Main Page   Class Hierarchy   Alphabetical List   Compound List   File List   Compound Members   File Members

XSSimpleTypeDefinition Class Reference

Inheritance diagram for XSSimpleTypeDefinition:

Inheritance graph
[legend]

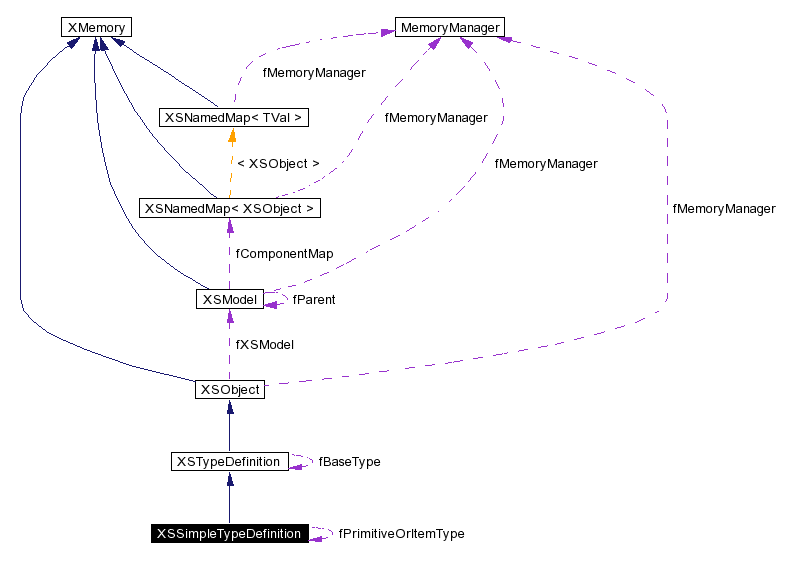

Collaboration diagram for XSSimpleTypeDefinition:

Collaboration graph
[legend]
List of all members.

Public Types

enum  VARIETY { VARIETY_ABSENT = 0, VARIETY_ATOMIC = 1, VARIETY_LIST = 2, VARIETY_UNION = 3 }
enum  FACET {
  FACET_NONE = 0, FACET_LENGTH = 1, FACET_MINLENGTH = 2, FACET_MAXLENGTH = 4,
  FACET_PATTERN = 8, FACET_WHITESPACE = 16, FACET_MAXINCLUSIVE = 32, FACET_MAXEXCLUSIVE = 64,
  FACET_MINEXCLUSIVE = 128, FACET_MININCLUSIVE = 256, FACET_TOTALDIGITS = 512, FACET_FRACTIONDIGITS = 1024,
  FACET_ENUMERATION = 2048
}
enum  ORDERING { ORDERED_FALSE = 0, ORDERED_PARTIAL = 1, ORDERED_TOTAL = 2 }

Public Methods

Constructors
 XSSimpleTypeDefinition (DatatypeValidator *const datatypeValidator, VARIETY stVariety, XSTypeDefinition *const xsBaseType, XSSimpleTypeDefinition *const primitiveOrItemType, XSSimpleTypeDefinitionList *const memberTypes, XSAnnotation *headAnnot, XSModel *const xsModel, MemoryManager *const manager=XMLPlatformUtils::fgMemoryManager)
 The default constructor. More...

Destructor
 ~XSSimpleTypeDefinition ()
XSSimpleTypeDefinition methods
VARIETY getVariety () const
 [variety]: one of {atomic, list, union} or absent. More...

XSSimpleTypeDefinition * getPrimitiveType ()
 If variety is atomic the primitive type definition (a built-in primitive datatype definition or the simple ur-type definition) is available, otherwise null. More...

XSSimpleTypeDefinition * getItemType ()
 If variety is list the item type definition (an atomic or union simple type definition) is available, otherwise null. More...

XSSimpleTypeDefinitionList * getMemberTypes () const
 If variety is union the list of member type definitions (a non-empty sequence of simple type definitions) is available, otherwise null. More...

int getDefinedFacets () const
 [facets]: get all facets defined on this type. More...

bool isDefinedFacet (FACET facetName)
 Convenience method. More...

int getFixedFacets () const
 [facets]: get all facets defined and fixed on this type. More...

bool isFixedFacet (FACET facetName)
 Convenience method. More...

const XMLCh * getLexicalFacetValue (FACET facetName)
 Convenience method. More...

StringList * getLexicalEnumeration ()
 Returns a list of enumeration values. More...

StringList * getLexicalPattern ()
 Returns a list of pattern values. More...

ORDERING getOrdered () const
 Fundamental Facet: ordered. More...

bool getFinite () const
 Fundamental Facet: cardinality. More...

bool getBounded () const
 Fundamental Facet: bounded. More...

bool getNumeric () const
 Fundamental Facet: numeric. More...

XSAnnotationList * getAnnotations ()
 Optional. More...

XSFacetList * getFacets ()
XSMultiValueFacetList * getMultiValueFacets ()
const XMLCh * getName ()
 The name of type NCName of this declaration as defined in XML Namespaces. More...

const XMLCh * getNamespace ()
 The [target namespace] of this object, or null if it is unspecified. More...

XSNamespaceItem * getNamespaceItem ()
 A namespace schema information item corresponding to the target namespace of the component, if it's globally declared; or null otherwise. More...

bool getAnonymous () const
 A boolean that specifies if the type definition is anonymous. More...

XSTypeDefinition * getBaseType ()
 {base type definition}: either a simple type definition or a complex type definition. More...

bool derivedFromType (const XSTypeDefinition *const ancestorType)
 Convenience method: check if this type is derived from the given ancestorType. More...


Protected Attributes

int fDefinedFacets
int fFixedFacets
VARIETY fVariety
DatatypeValidator * fDatatypeValidator
XSFacetList * fXSFacetList
XSMultiValueFacetList * fXSMultiValueFacetList
StringList * fPatternList
XSSimpleTypeDefinition * fPrimitiveOrItemType
XSSimpleTypeDefinitionList * fMemberTypes
XSAnnotationList * fXSAnnotationList

Friends

class XSObjectFactory

Member Enumeration Documentation

enum XSSimpleTypeDefinition::FACET


Enumeration values:
FACET_NONE  No facets defined.
FACET_LENGTH  4.3.1 Length.
FACET_MINLENGTH  4.3.2 minLength.
FACET_MAXLENGTH  4.3.3 maxLength.
FACET_PATTERN  4.3.4 pattern.
FACET_WHITESPACE  4.3.5 whitespace.
FACET_MAXINCLUSIVE  4.3.7 maxInclusive.
FACET_MAXEXCLUSIVE  4.3.9 maxExclusive.
FACET_MINEXCLUSIVE  4.3.9 minExclusive.
FACET_MININCLUSIVE  4.3.10 minInclusive.
FACET_TOTALDIGITS  4.3.11 totalDigits .
FACET_FRACTIONDIGITS  4.3.12 fractionDigits.
FACET_ENUMERATION  4.3.5 enumeration.

enum XSSimpleTypeDefinition::ORDERING


Enumeration values:
ORDERED_FALSE  A constant defined for the 'ordered' fundamental facet: Not ordered.
ORDERED_PARTIAL  A constant defined for the 'ordered' fundamental facet: partially ordered.
ORDERED_TOTAL  A constant defined for the 'ordered' fundamental facet: total ordered.

enum XSSimpleTypeDefinition::VARIETY


Enumeration values:
VARIETY_ABSENT  The variety is absent for the anySimpleType definition.
VARIETY_ATOMIC  Atomic type.
VARIETY_LIST  List type.
VARIETY_UNION  Union type.

Constructor & Destructor Documentation

XSSimpleTypeDefinition::XSSimpleTypeDefinition (  DatatypeValidator *const    datatypeValidator,
VARIETY    stVariety,
XSTypeDefinition *const    xsBaseType,
XSSimpleTypeDefinition *const    primitiveOrItemType,
XSSimpleTypeDefinitionList *const    memberTypes,
XSAnnotation *    headAnnot,
XSModel *const    xsModel,
MemoryManager *const    manager = XMLPlatformUtils::fgMemoryManager
)


The default constructor.

Parameters:
datatypeValidator
stVariety
xsBaseType
primitiveOrItemType
memberTypes
headAnnot
xsModel
manager  The configurable memory manager

XSSimpleTypeDefinition::~XSSimpleTypeDefinition (    )


Member Function Documentation

bool XSSimpleTypeDefinition::derivedFromType (  const XSTypeDefinition *const    ancestorType )  [virtual]


Convenience method: check if this type is derived from the given ancestorType.

Parameters:
ancestorType  An ancestor type definition.
Returns:
Return true if this type is derived from ancestorType.

Implements XSTypeDefinition.

XSAnnotationList * XSSimpleTypeDefinition::getAnnotations (    )


Optional.

A set of [annotation]s.

bool XSSimpleTypeDefinition::getAnonymous (    )  const [virtual]


A boolean that specifies if the type definition is anonymous.

Convenience attribute.

Implements XSTypeDefinition.

XSTypeDefinition* XSSimpleTypeDefinition::getBaseType (    )  [virtual]


{base type definition}: either a simple type definition or a complex type definition.

Implements XSTypeDefinition.

bool XSSimpleTypeDefinition::getBounded (    )  const


Fundamental Facet: bounded.

int XSSimpleTypeDefinition::getDefinedFacets (    )  const


[facets]: get all facets defined on this type.

The value is a bit combination of FACET_XXX constants of all defined facets.

XSFacetList * XSSimpleTypeDefinition::getFacets (    )


Returns:
list of constraining facets. This method must not be used to retrieve values for enumeration and pattern facets.

bool XSSimpleTypeDefinition::getFinite (    )  const


Fundamental Facet: cardinality.

int XSSimpleTypeDefinition::getFixedFacets (    )  const


[facets]: get all facets defined and fixed on this type.

XSSimpleTypeDefinition * XSSimpleTypeDefinition::getItemType (    )


If variety is list the item type definition (an atomic or union simple type definition) is available, otherwise null.

StringList* XSSimpleTypeDefinition::getLexicalEnumeration (    )


Returns a list of enumeration values.

const XMLCh* XSSimpleTypeDefinition::getLexicalFacetValue (  FACET    facetName )


Convenience method.

Returns a value of a single constraining facet for this simple type definition. This method must not be used to retrieve values for enumeration and pattern facets.

Parameters:
facetName  The name of the facet, i.e. FACET_LENGTH, FACET_TOTALDIGITS (see XSConstants).To retrieve value for pattern or enumeration, see enumeration and pattern.
Returns:
A value of the facet specified in facetName for this simple type definition or null.

StringList * XSSimpleTypeDefinition::getLexicalPattern (    )


Returns a list of pattern values.

XSSimpleTypeDefinitionList * XSSimpleTypeDefinition::getMemberTypes (    )  const


If variety is union the list of member type definitions (a non-empty sequence of simple type definitions) is available, otherwise null.

XSMultiValueFacetList * XSSimpleTypeDefinition::getMultiValueFacets (    )


Returns:
list of enumeration and pattern facets.

const XMLCh* XSSimpleTypeDefinition::getName (    )  [virtual]


The name of type NCName of this declaration as defined in XML Namespaces.

Implements XSTypeDefinition.

const XMLCh* XSSimpleTypeDefinition::getNamespace (    )  [virtual]


The [target namespace] of this object, or null if it is unspecified.

Implements XSTypeDefinition.

XSNamespaceItem* XSSimpleTypeDefinition::getNamespaceItem (    )  [virtual]


A namespace schema information item corresponding to the target namespace of the component, if it's globally declared; or null otherwise.

Implements XSTypeDefinition.

bool XSSimpleTypeDefinition::getNumeric (    )  const


Fundamental Facet: numeric.

ORDERING XSSimpleTypeDefinition::getOrdered (    )  const


Fundamental Facet: ordered.

XSSimpleTypeDefinition * XSSimpleTypeDefinition::getPrimitiveType (    )


If variety is atomic the primitive type definition (a built-in primitive datatype definition or the simple ur-type definition) is available, otherwise null.

XSSimpleTypeDefinition::VARIETY XSSimpleTypeDefinition::getVariety (    )  const


[variety]: one of {atomic, list, union} or absent.

bool XSSimpleTypeDefinition::isDefinedFacet (  FACET    facetName )


Convenience method.

[Facets]: check whether a facet is defined on this type.

Parameters:
facetName  The name of the facet.
Returns:
True if the facet is defined, false otherwise.

bool XSSimpleTypeDefinition::isFixedFacet (  FACET    facetName )


Convenience method.

[Facets]: check whether a facet is defined and fixed on this type.

Parameters:
facetName  The name of the facet.
Returns:
True if the facet is fixed, false otherwise.

Friends And Related Function Documentation

friend class XSObjectFactory [friend]


Member Data Documentation

DatatypeValidator* XSSimpleTypeDefinition::fDatatypeValidator [protected]


int XSSimpleTypeDefinition::fDefinedFacets [protected]


int XSSimpleTypeDefinition::fFixedFacets [protected]


XSSimpleTypeDefinitionList* XSSimpleTypeDefinition::fMemberTypes [protected]


StringList* XSSimpleTypeDefinition::fPatternList [protected]


XSSimpleTypeDefinition* XSSimpleTypeDefinition::fPrimitiveOrItemType [protected]


VARIETY XSSimpleTypeDefinition::fVariety [protected]


XSAnnotationList* XSSimpleTypeDefinition::fXSAnnotationList [protected]


XSFacetList* XSSimpleTypeDefinition::fXSFacetList [protected]


XSMultiValueFacetList* XSSimpleTypeDefinition::fXSMultiValueFacetList [protected]


The documentation for this class was generated from the following file:
